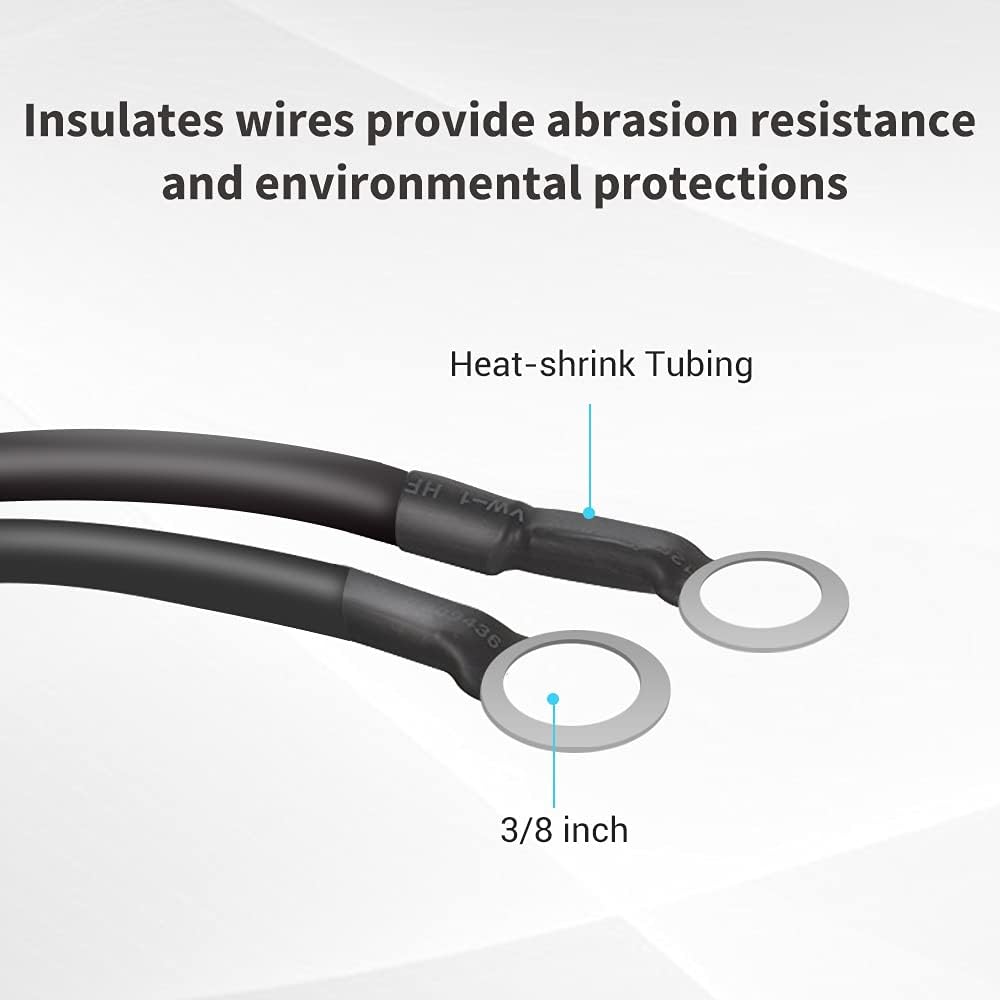

TUV tested cable. TUV logo print per feet indicates that the cable meets TUV standards for PV solar applicationUV resistant and waterproof. Produce optimal power output even in high temperature conditions.Contain a set of positive and negative cables to connect the charge controller to battery. The Temperature is from -40°F to +185°F. The Rating Voltage is TUV 1000V.Heat-shrink tubing insulates wires, provides abrasion resistance and electrical safety. 3/8 inch round center hole.High-purity oxygen-free Copper wiring for maximum conductivity. Tin plating.
Color
Black
Brand
Renogy
Material
Copper
Number of Cable Strands
Multi Strand
Gauge

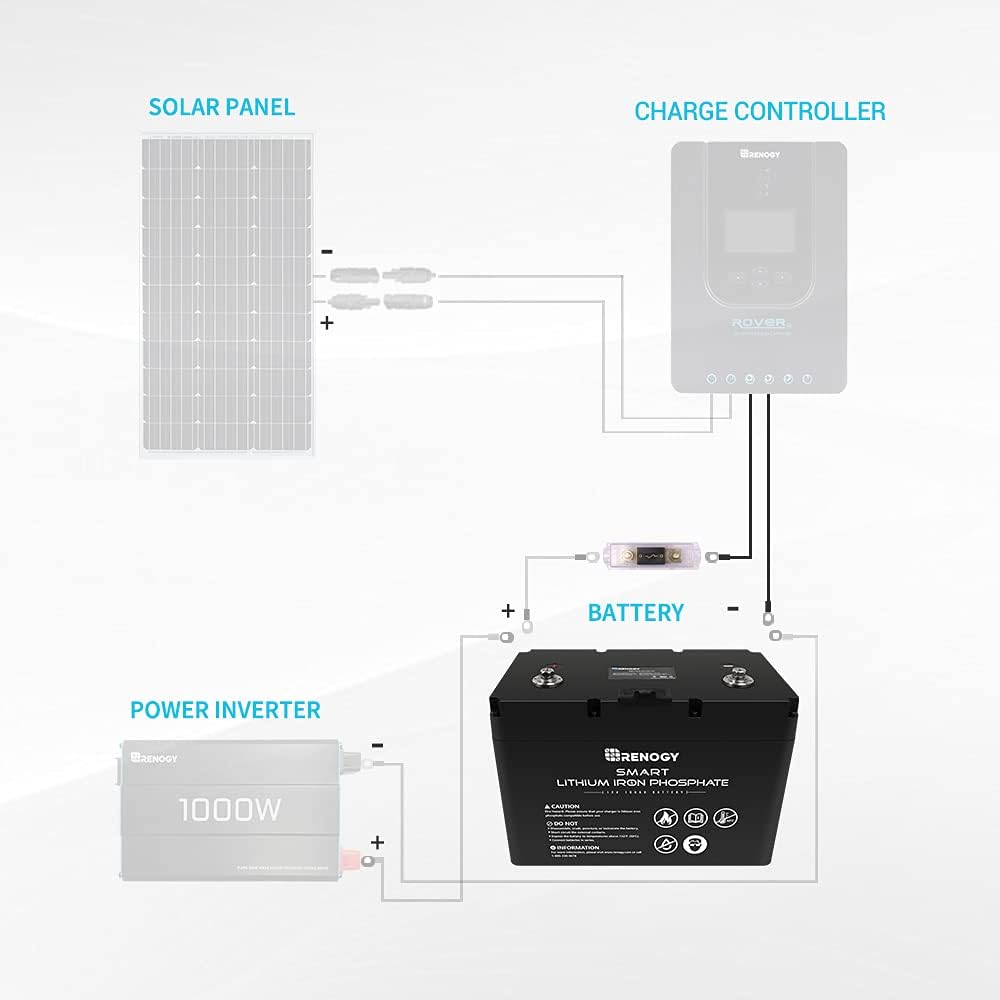

10.0Product DescriptionRenogy 16 ft 10AWG Wire Copper Solar Power Tray Cable is a set of two wires made for connecting your charge controller to your battery. Specialized with battery rings on one end for effortless connection to your battery and exposed wire on the other end to lead directly into your charge controller; this wire makes system set up as easy as can be!
10.0
Renogy 16 ft 10AWG Wire Copper Solar Power Tray Cable is a set of two wires made for connecting your charge controller to your battery. Specialized with battery rings on one end for effortless connection to your battery and exposed wire on the other end to lead directly into your charge controller; this wire makes system set up as easy as can be!

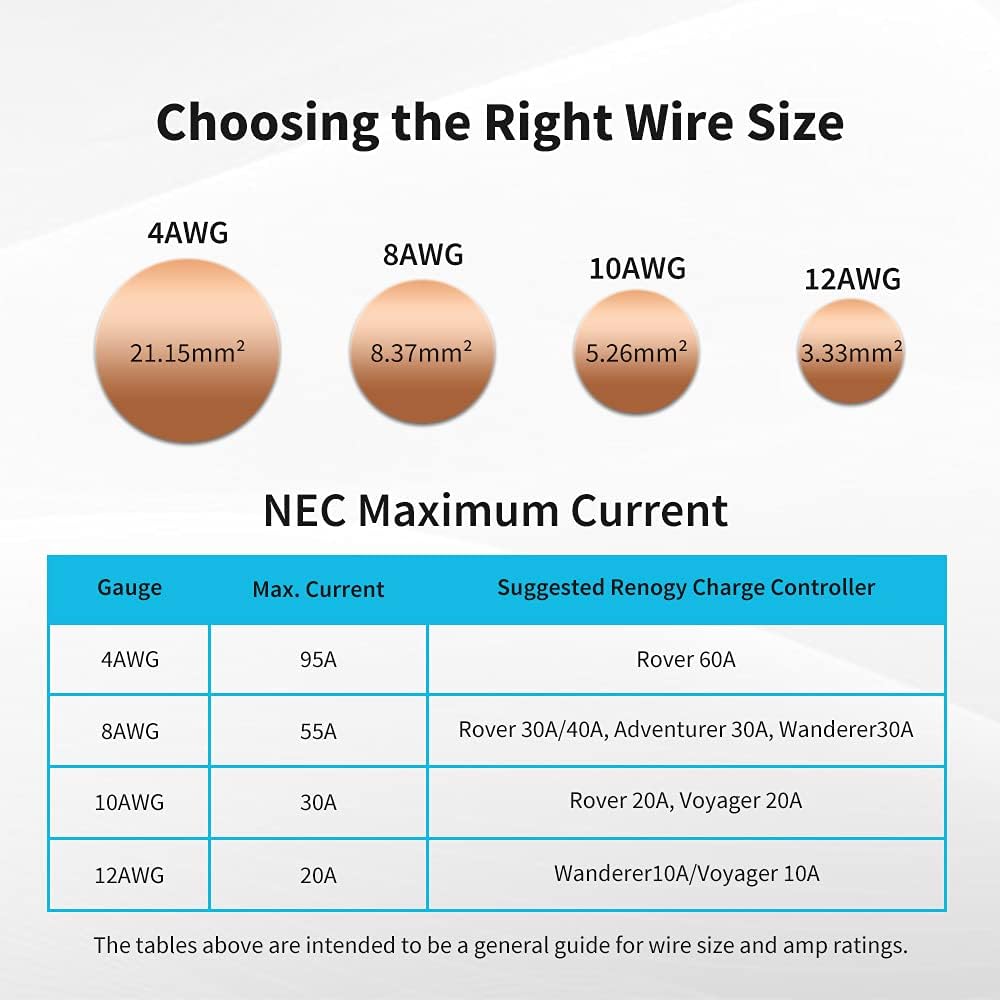

1. What battery cables do I need to connect my charge controller and battery?A: Connect your charge controller to the battery with Renogy high-quality coppers tray cable. Specialized with battery rings on one end for effortless connection to your battery and exposed wire on the other end to lead directly into your charge controller, this wire makes the system set up as easy as can be!2. What wire size should my battery cables be?A: Consider the following factors when sizing your wire:Current flow in amps. Pick a wire gauge that is big enough to carry the amount of current (in amps) that will be flowing through your system. For instance, if you have Renogy 40Amp charge controllers, we would recommend using 8AWG wires.Charge controller terminals. Some charge controllers have small terminals that won’t accept wire thicker than a certain gauge. Check to see if compatible wire gauges are listed in your charge controller’s manual.3 Do I need to have the fuse between the charge controller and battery?A: When hooking up your Renogy system, the best way to add protection is by using fuses or circuit breakers. Fuses and circuit breakers are used to protect the wiring from getting too hot and also protect all devices connected in the system from catching fire or getting damaged if a short circuit occurs. They are not necessary for the system to run properly, but we always recommend using fuses or circuit breakers for safety purposes.There are three different locations that we recommend installing fuses or breakers: first, between the charge controller and battery bank, second, between the charge controller and solar panels, and third would be between the battery bank and inverter.To determine the fuse size needed between the charge controller and battery bank you simply match the amperage rating on the charge controller. For instance, if you have Renogy 40Amp charge controllers, we would recommend using a 40Amp fuse.
