10 Panel, Double-Row Installation, Standard SW-38 Hybrid Solar Water Heater by Heliatos Solar, USA manufactured

Product Description

Our 10 Panel, Double-Row, Hybrid Solar Water Heating Kit allows you to install your system in record time. Based on our new and improved SW-38 Solar Water Heater panels, you simply thread the panels together.
No more external connection pipes for multi panel installations! Each panel weighs slightly over 12 lbs. and is 24" by 24" but can still provide you with ample hot water. As with all of our
Heliatos Solar Water Heating Kits you can begin your system with this kit and add more panels later, if needed. With this kit you DO NOT have to solder at all!
Please Note: This System will not work with Marathon non-metallic water heaters and is NOT freeze protected. If you experience freezes you either have to drain the system
or consider our Freeze Protected Solar Water Heating Systems.

Each kit comes with:
10 SW-38 Panels
All fittings, Adapters, and Connectors, Wire

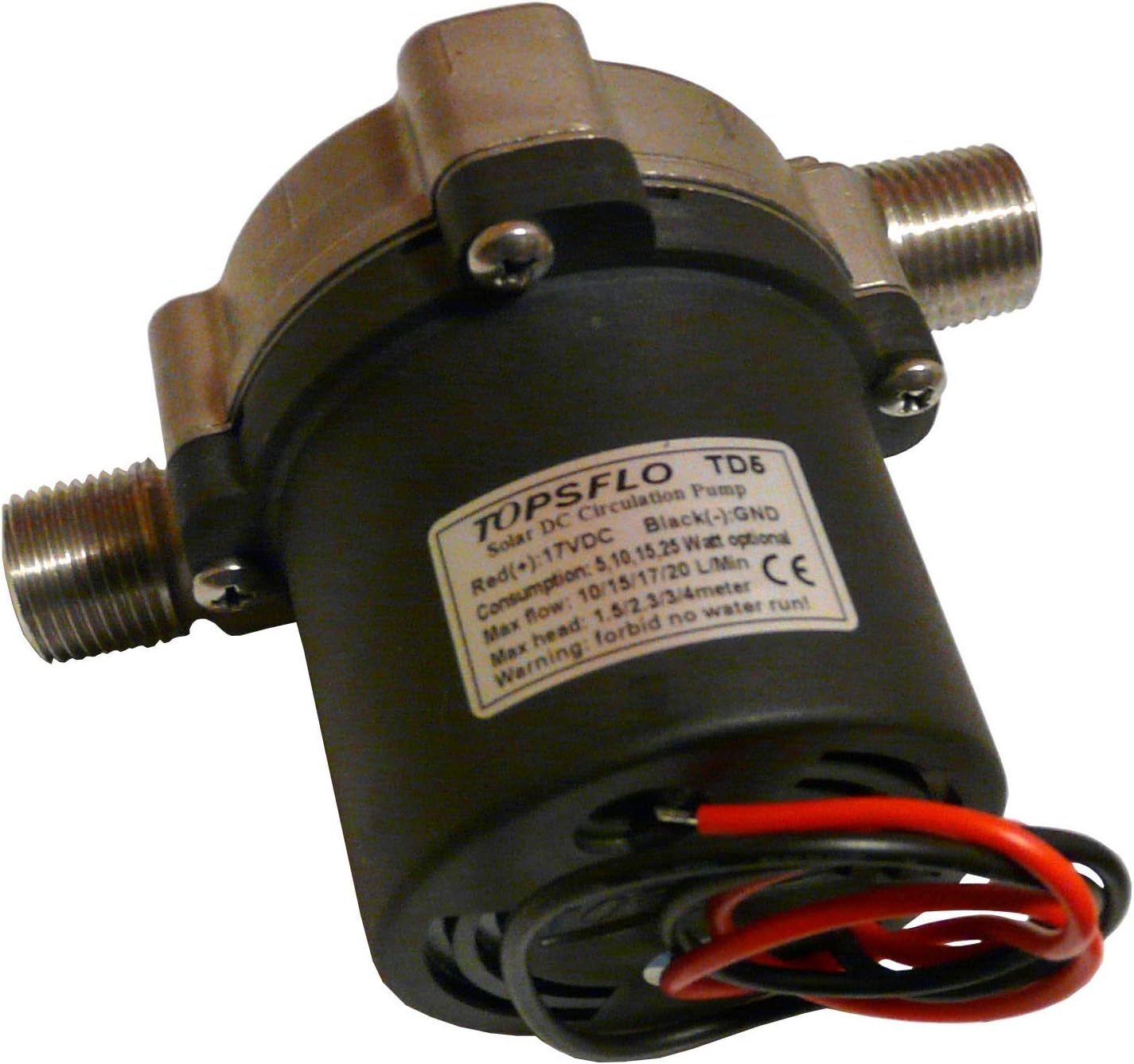

1 TopsFlo TD5 Stainless Steel Pump

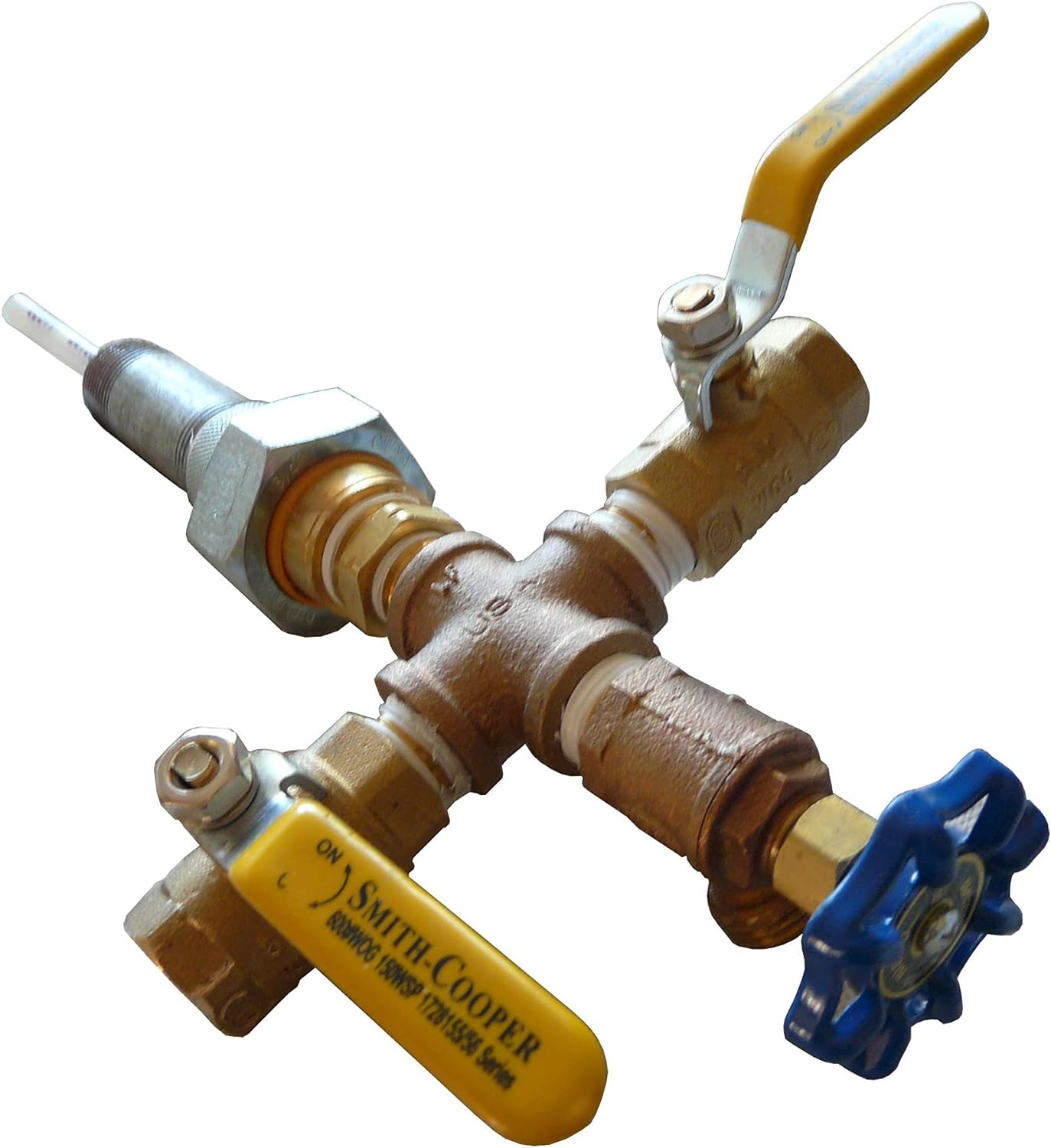

1 Bottom Feed Connector to connect directly to your existing water heater

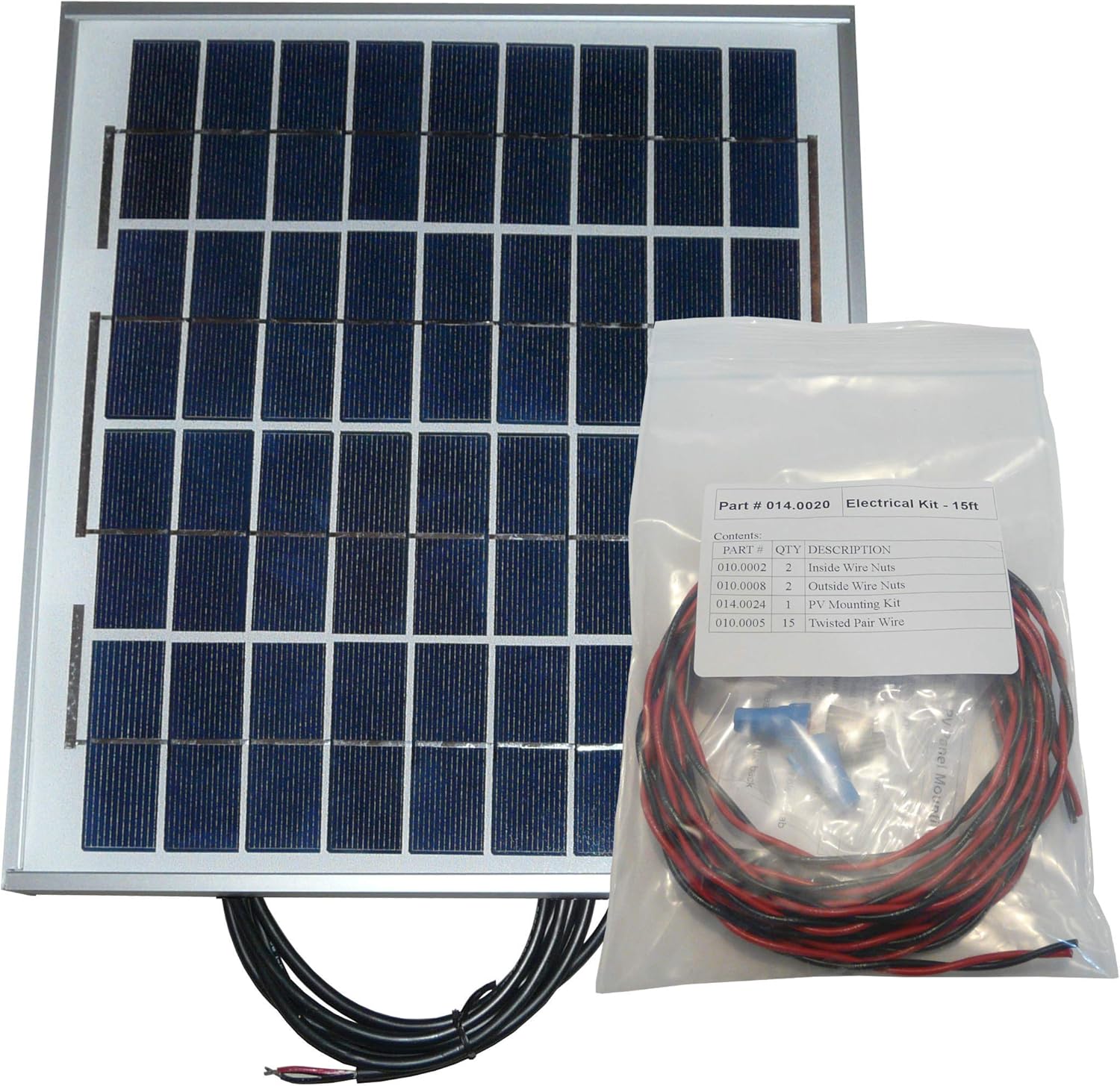

1 10W PV panel to power the pump - NO grid connection required

Installation Instructions
All You have to supply is:
Your choice of 1/2" Pipe from the panels to the water heater(Copper, CPVC, or PEX)
Fasteners to attach the panels to the roof, and the parts to feed the pipes through the roof if needed.
Insulation for the pipes.
Your existing Water Heater
Tools needed for installation

Sizing;

30 Gallon Hot Water Tank   =   2-3 Panels

40 Gallon Hot Water Tank   =   2-4 Panels

50 Gallon Hot Water Tank   =   3-5 Panels

80 Gallon Hot Water Tank   =   5-8 Panels

120 Gallon Hot Water Tank   =   10 Panels

Please press to review installation instructions:

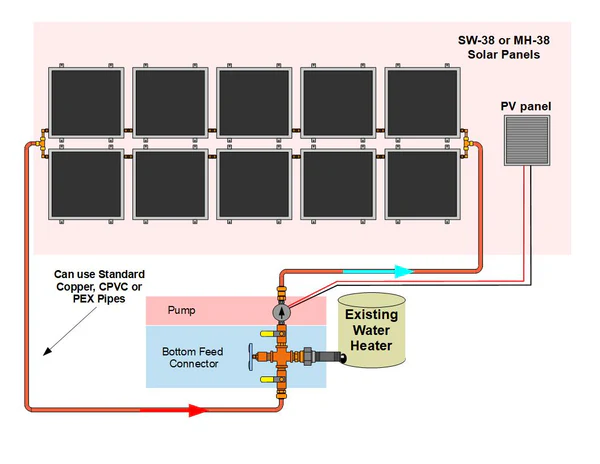

Standard Kit- Double Row Installation
